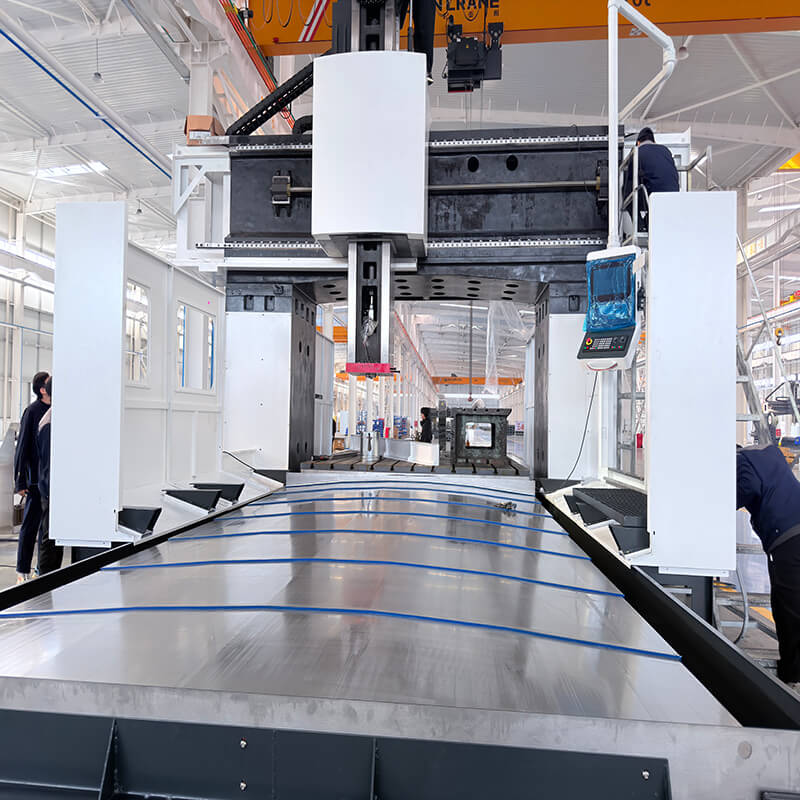

X2014 Wide Width Gantry Type Milling Machine

X2014 is the super large gantry milling machine with maximum processing size. It meets ultra‑heavy and oversized workpiece machining demands.The X2014 is an extra-large gantry milling machine with 1800 mm table width and up to 4000 mm longitudinal travel. Designed for heavy industrial applications, it features a 7.5kW spindle and massive 1920 mm column spacing.

Ordine (MOQ) :
1
Origine del prodotto :
China
Colore :
Customized
Porto di spedizione :
Qingdao
Tempi di consegna :
30

Richiedi informazioni adesso

High Rigidity Gantry Metal Milling Machine

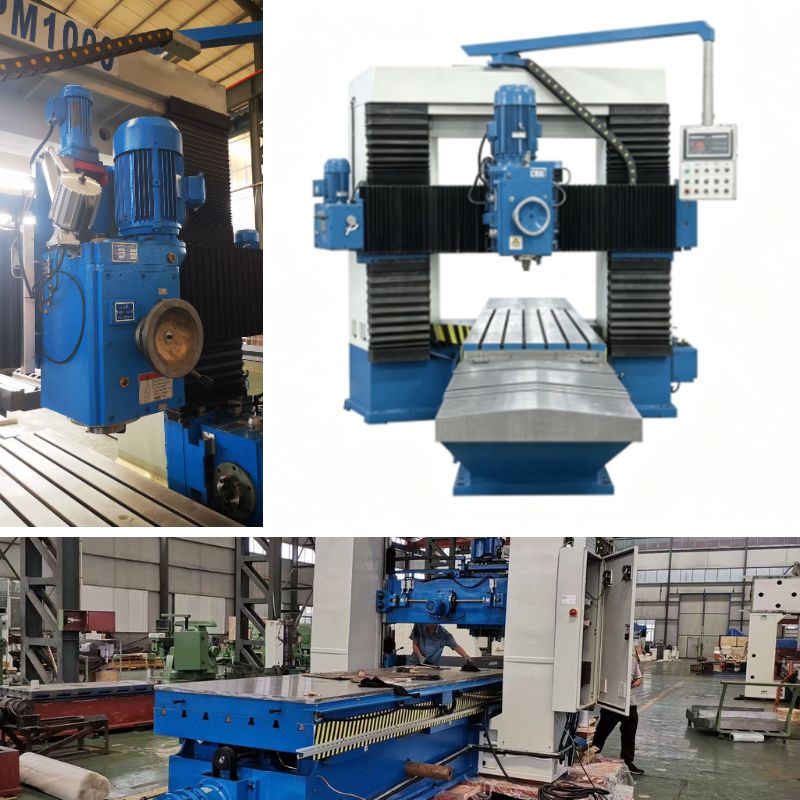

Gantry type milling machine for big workpiece

1.Maximum-class gantry: With a passage width of 1800 mm and a height of 1200 mm, it is capable of machining extra-large structural components.

2.Optional spindle power: Standard 7.5 kW, with optional 11 kW or 15 kW configurations to accommodate different materials.

3.Precision rack-and-pinion drive: Longitudinal movement utilises a rack-and-pinion drive system, eliminating crawling and ensuring high transmission efficiency.

4.Optional full enclosure: A semi-enclosed guard is available to minimise chip scatter.

specification

Specification		Unit	X2014
Max.outline	Length	mm	2000/3000/4000
	Width	mm	1800
	Height	mm	1000/1200
Distance between columns		mm	1920
Table size	Length	-	2000/3000/4000
Table size	Width	-	1400
Table feeding speed	Feod	-	25-450
Table feeding speed	Rapid travel	-	1300
Spinidle laper		-	7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of miling head		-	±35°
Feed rate of miling head		mm	(Along the cross rail):65/320/890 (Side milling head):50/265/730
Power of spincle motor		kw	7.5
Power of table motor		kw	5.5/7.5(3000.4000)
Overall size	Length	mm	5000/7000/9000
	Width	mm	3550
	Height	mm	2950/3150

Product Advantages

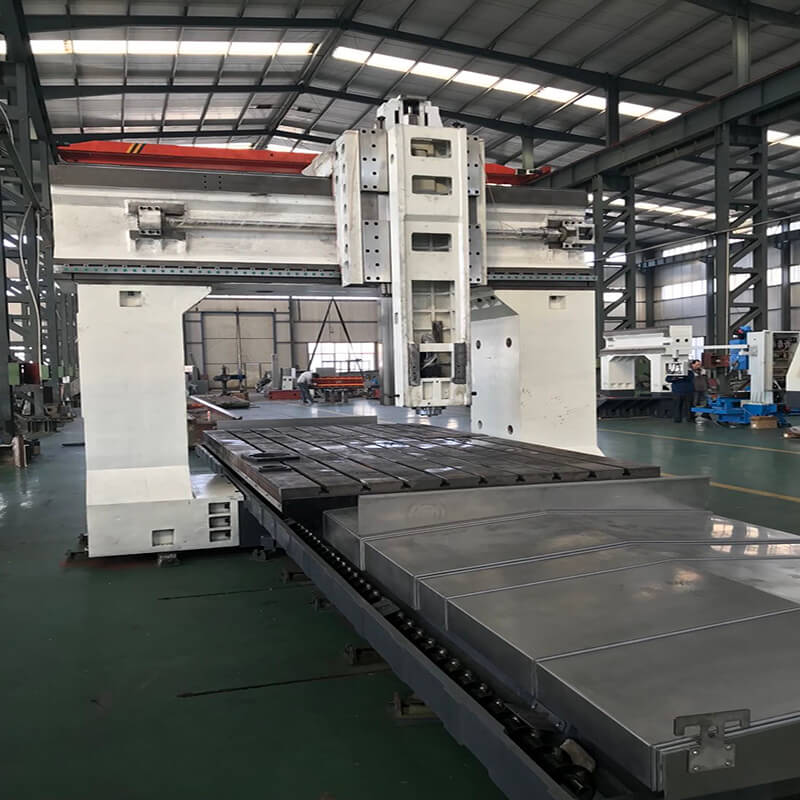

Dual Beams Enhanced Rigidity
Front and rear dual beam design – overall rigidity increased by 30%, suitable for ultra-heavy cutting.
Precision Rack & Pinion Drive
Longitudinal drive with rack & pinion – eliminates stick-slip, high transmission efficiency, ideal for long travel.
Knock-Down Shipping
Machine disassembled into sections for container shipping – on-site installation, suitable for export and long-distance delivery.
Largest Class Gantry

processes extra-large structural parts like marine diesel engine bases.
Heavy-Duty Table High Load

Table width 1400 mm, length 4000 mm – load capacity over 10 tons, suitable for heavy castings.
