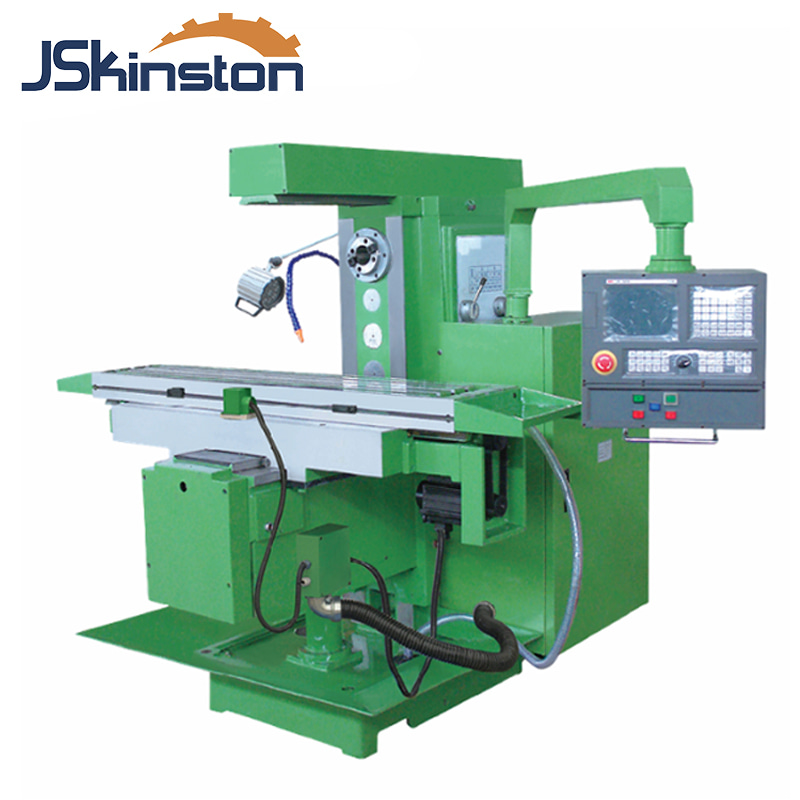

XLK6036CL CNC Horizontal Knee-Type Milling Machine with Siemens

Name: XLK6036CL CNC Horizontal Knee-Type Milling Machine with Siemens
Availability: InStock

XLK6036CL CNC horizontal milling machine adopts SIEMENS 808D system. It realizes automatic machining with high precision and high efficiency.The XLK6036CL is a CNC horizontal milling machine standard with Siemens 808D controller. Featuring a 1600×360 mm table and 5.5kW spindle, it brings automation to heavy horizontal milling tasks.

Ordine (MOQ) :
1
Origine del prodotto :
China
Colore :
Customized
Porto di spedizione :
Qingdao
Tempi di consegna :
30
Peso :
2510Kg

Richiedi informazioni adesso

CNC Horizontal Knee-Type Milling Machine with High Precision

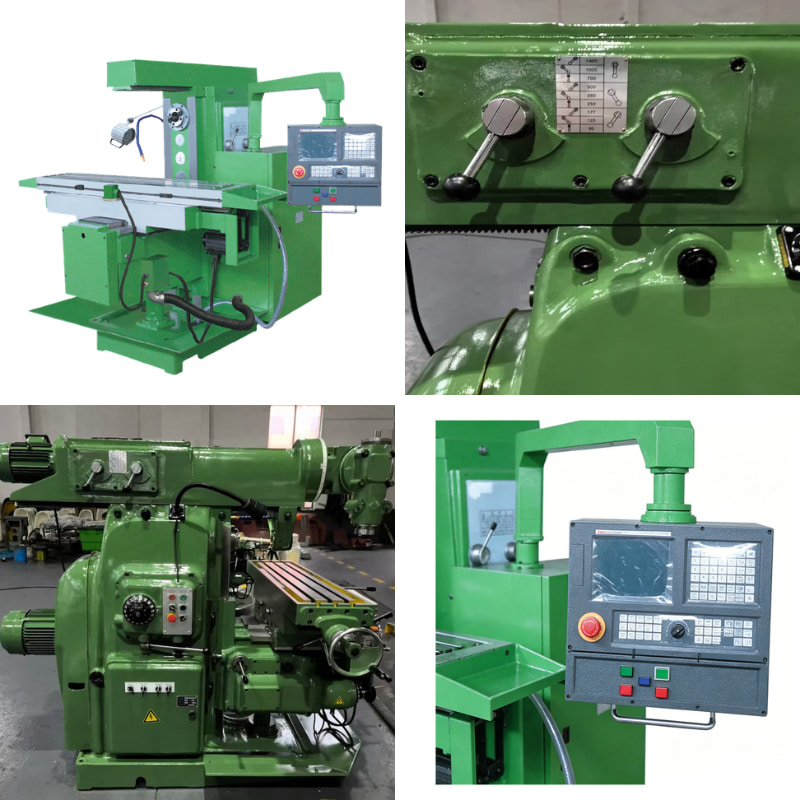

Extended Travel Universal Milling Machine

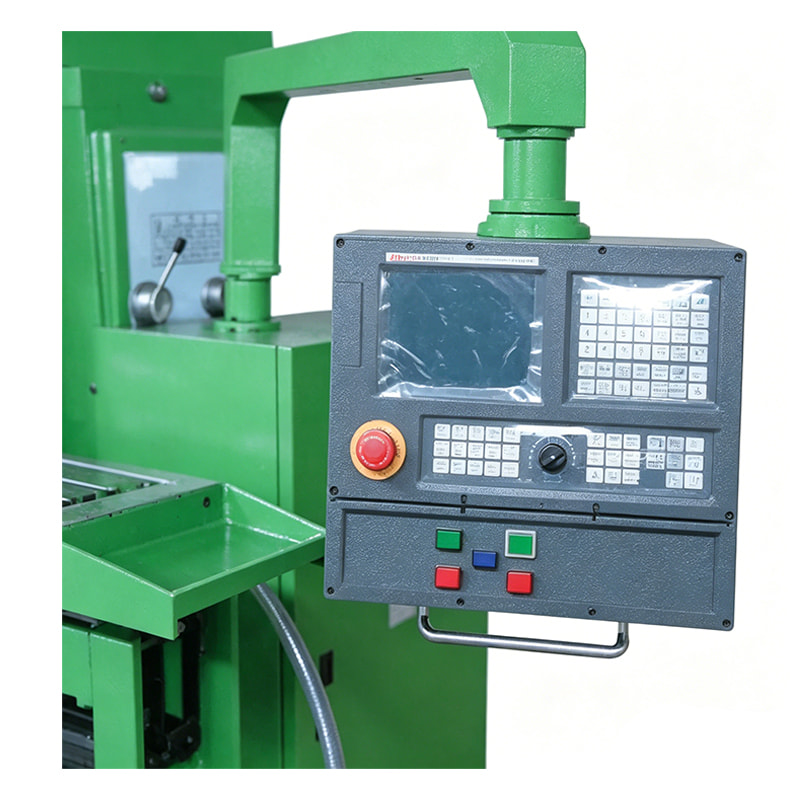

1.Siemens 808D system: graphical programming, supports ISO code, features a USB interface, and is easy to learn.

2.High-rigidity horizontal structure: Horizontally mounted spindle, suitable for heavy-duty cutting; tool holder ensures stability for long tool holders.

3.Servo drive: Servo motors on all X, Y and Z axes, with rapid traverse speeds of 4000/4000/3000 mm/min.

4.Compatible with multiple systems: Optional FANUC, Mitsubishi or GSK980MDC systems available to suit different user preferences.

specification

Specification	Unit	XLK6036C	XLK6036CL
Spindle hole taper	一	7:24 ISO50
Distance between spindle and table surface	mm	10-460
Distance from spindle axis to arm	mm	175
Spindle speed range	r/min	12steps 60-1800
Arm travel	mm	500

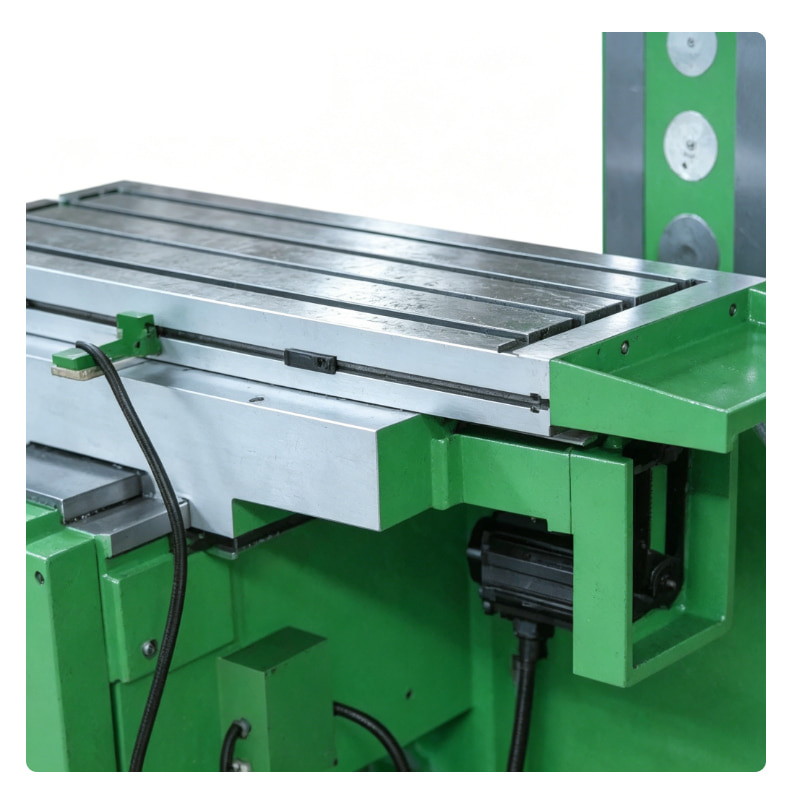

Table size	mm	1325×360	1600×360
Table travel(XY/Z)	mm	1100/320/450	1300/320/450
Table rapid feed speed	mm/min	4000/4000/3000
T-slot(No./width/pitch)	mm	3/18/70
Main motor power	kw	5.5
Torque of×/Y/Zaxis AC servo motor	N.m	10/10/18
Overall size(LxW×H)	mm	2400×2000×1870	28C0×200Dx1870
Net weight	kg	2465	2510

Product Advantages

Siemens 808D CNC System
Graphical programming, ISO code support, USB interface – easy to learn, ideal for transition from manual to CNC.
4th Axis Ready
Reserved interface – add CNC rotary table for 4-axis simultaneous machining of spiral grooves, cams, etc.
High-Speed Rapid Traverse
XYZ rapids 4000/4000/3000 mm/min – greatly reduces auxiliary time, improves productivity.
Compatible with Multiple CNC Systems
Optional FANUC, Mitsubishi, GSK980MDC – adapts to different user preferences.

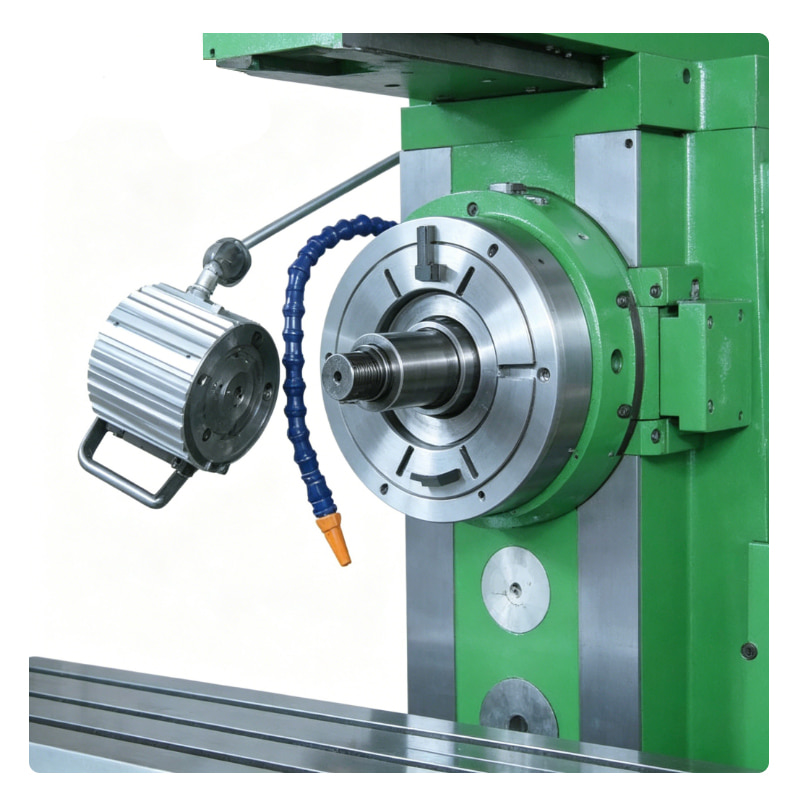

Horizontal Structure for Heavy Cutting
Horizontal spindle with arbor support – suitable for heavy cuts, arbor stability better than vertical.
