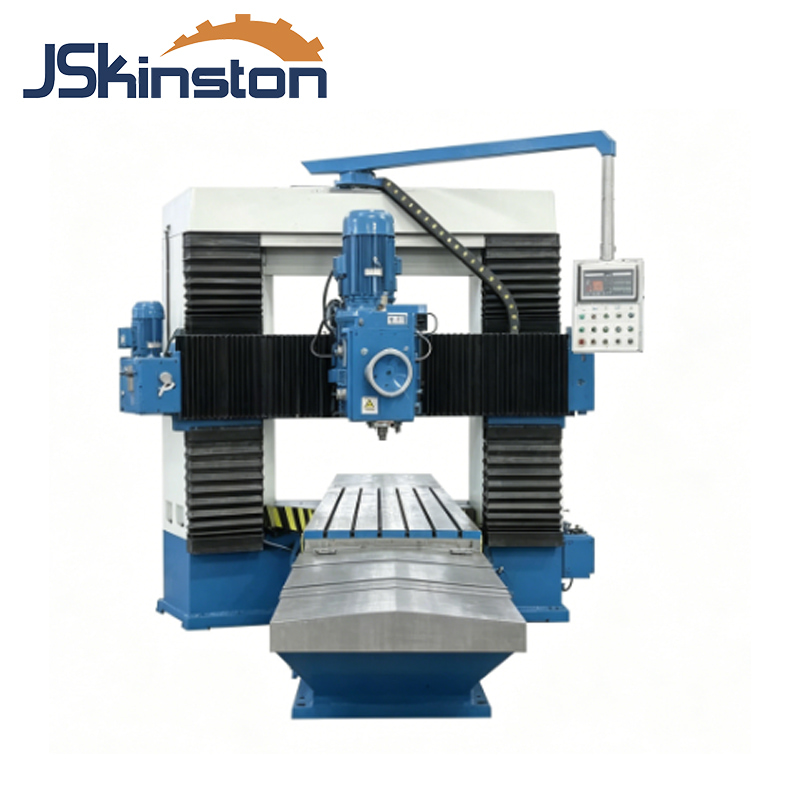

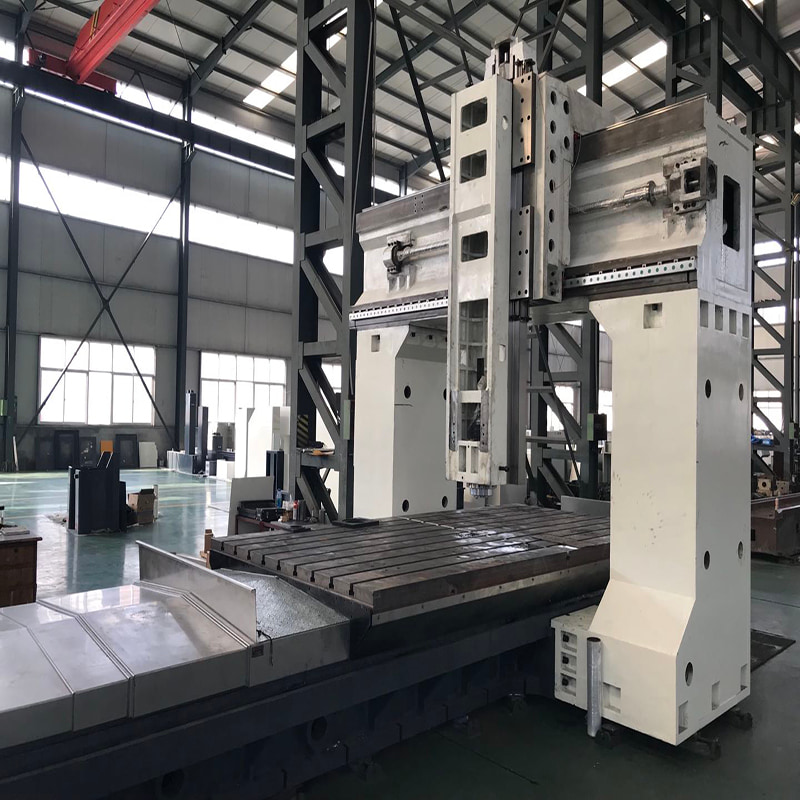

X2012 Heavy Duty Gantry Metal Milling Machine

X2012 gantry milling machine provides extra wide processing width. It features high stability and strong cutting force for oversized workpieces.The X2012 gantry milling machine offers expanded capacity with 1400 mm width and 1200 mm height under the rail. Ideal for large dies, wind power components, and heavy equipment parts.

Ordine (MOQ) :
1
Origine del prodotto :
China
Colore :
Customized
Porto di spedizione :
Qingdao
Tempi di consegna :
30

Richiedi informazioni adesso

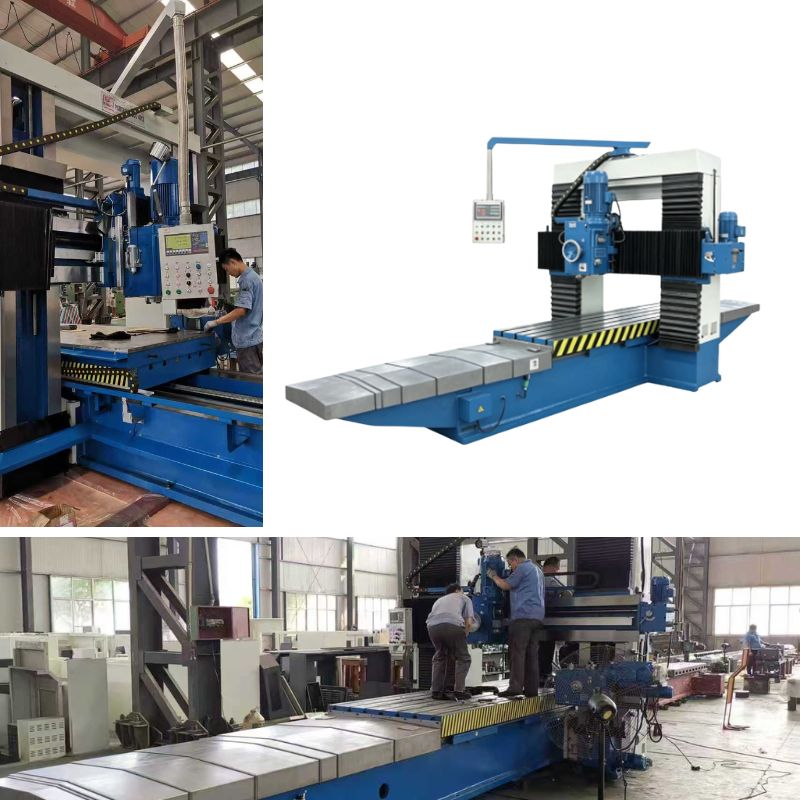

X2012 Wide Width Gantry Milling Machine

1.Extra-large working area: 1400 mm wide, 1200 mm high, with a column spacing of 1600 mm, accommodating oversized workpieces.

2.Reinforced crossbeam: The crossbeam features an enlarged cross-section to ensure stability during heavy-duty machining.

3.Precision feed: Worktable feed speed is infinitely adjustable from 25 to 450 mm/min, with a rapid traverse of 1300 mm/min.

4.Dual-drive table: The long-travel table utilises dual motors for synchronous drive, preventing crawling.

5.Optional side milling head: Enables five-sided machining, allowing multiple-surface milling to be completed in a single set-up.

specification

Specification		Unit	X2012
Max.outline	Length	mm	2000/3000/4000
	Width	mm	1400
	Height	mm	1000/1200
Distance between columns		mm	1600
Table size	Length	-	2000/3000/4000
Table size	Width	-	1250
Table feeding speed	Feod	-	25-450
Table feeding speed	Rapid travel	-	1300
Spinidle laper		-	7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of miling head		-	±35°
Feed rate of miling head		mm	(Along the cross rail):65/320/890 (Side milling head):50/265/730
Power of spincle motor		kw	7.5
Power of table motor		kw	5.5/7.5(3000.4000)
Overall size	Length	mm	5000/7000/9000
	Width	mm	3550
	Height	mm	2950/3150

Product Advantages

Optional DRO Linear Scale
Optional digital readout with linear scale – improves positioning accuracy for precision work.

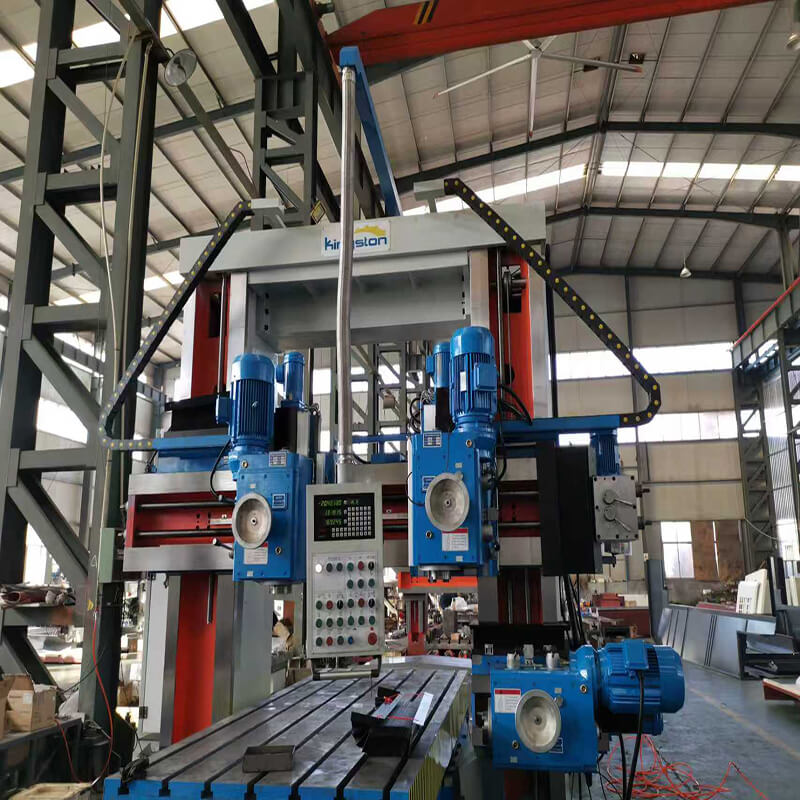

Optional Side Head for 5-Side Machining
Add side milling head – complete 5-side machining in one setup, improving efficiency.

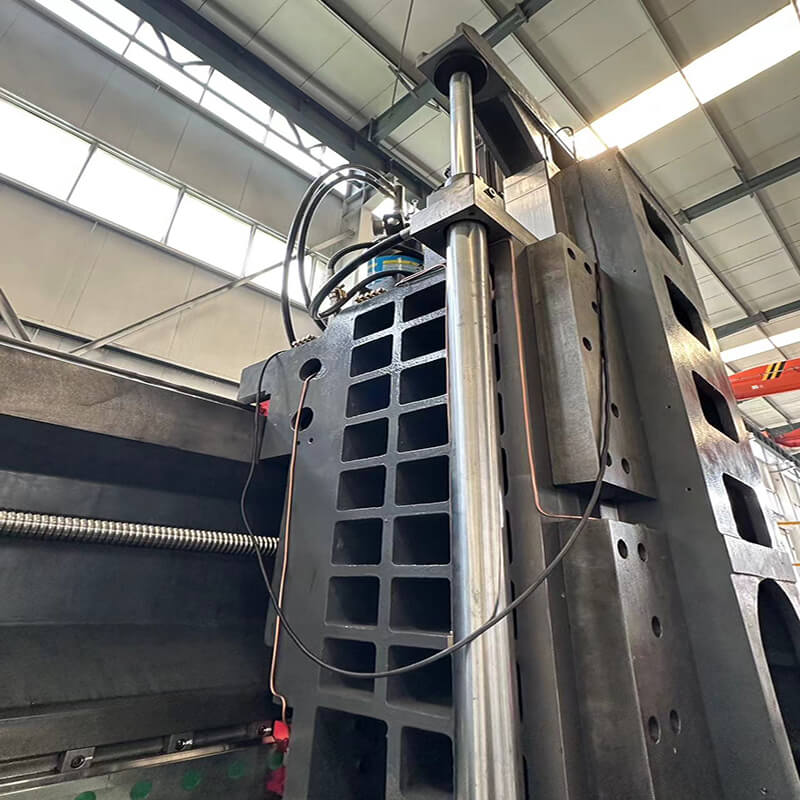

Adjustable Crossbeam Height
Crossbeam moves up/down along columns – adapts to different workpiece heights, good flexibility.
Customizable Long Travel

Longitudinal travel – choose as needed, no wasted investment.
Wide Machining Width
suitable for large weldments and castings, such as construction machinery structural parts.
