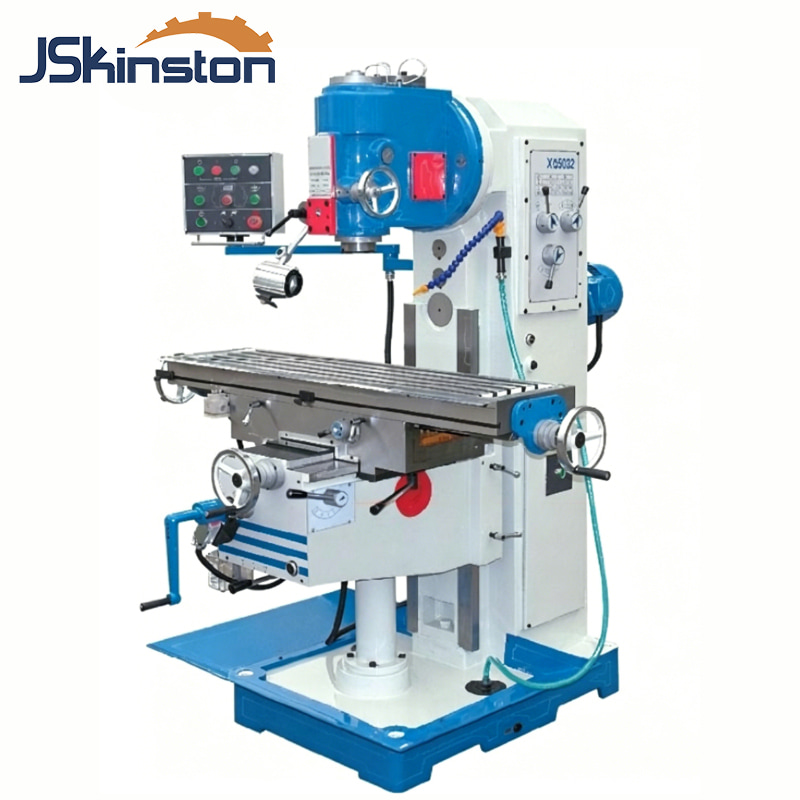

Economy Vertical Milling Machine with Servo Motor Feeds XQ5032A/C

Economy Vertical Milling Machine with Servo Motor Feeds XQ5032A/C

XQ5032A/C uses servo motor drive for stable and precise feeding. It supports customizable worktable and flexible machining for small workshops.The XQ5032A is an economical vertical milling machine with a 3kW spindle motor and servo-driven XYZ feeds.This budget-friendly vertical mill handles longer parts without breaking the bank.

Ordine (MOQ) :
1
Origine del prodotto :
China
Colore :
Customized
Porto di spedizione :
Qingdao
Tempi di consegna :
30
Peso :
1650Kg

Richiedi informazioni adesso

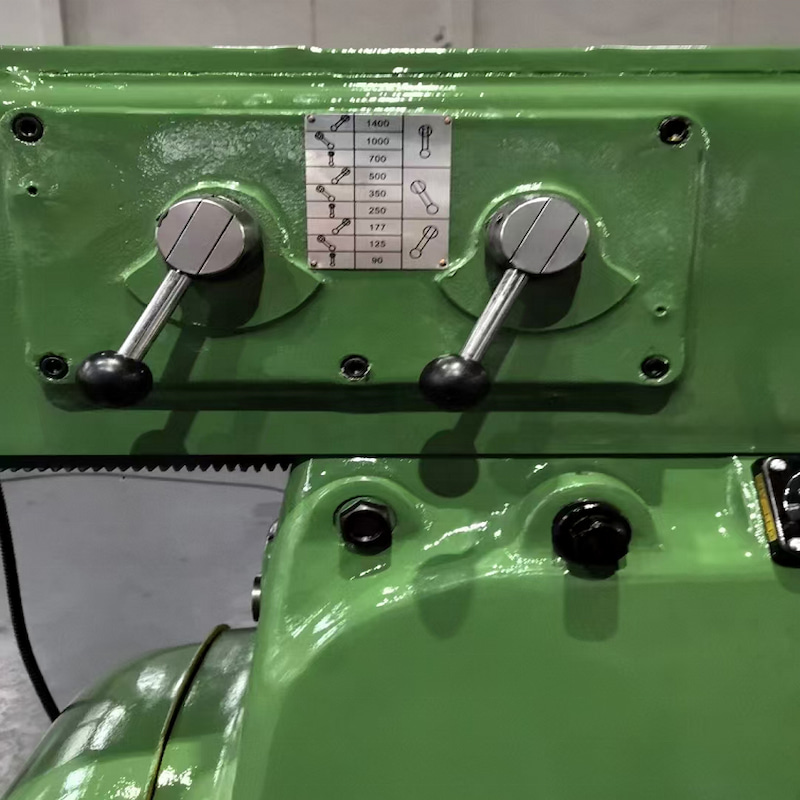

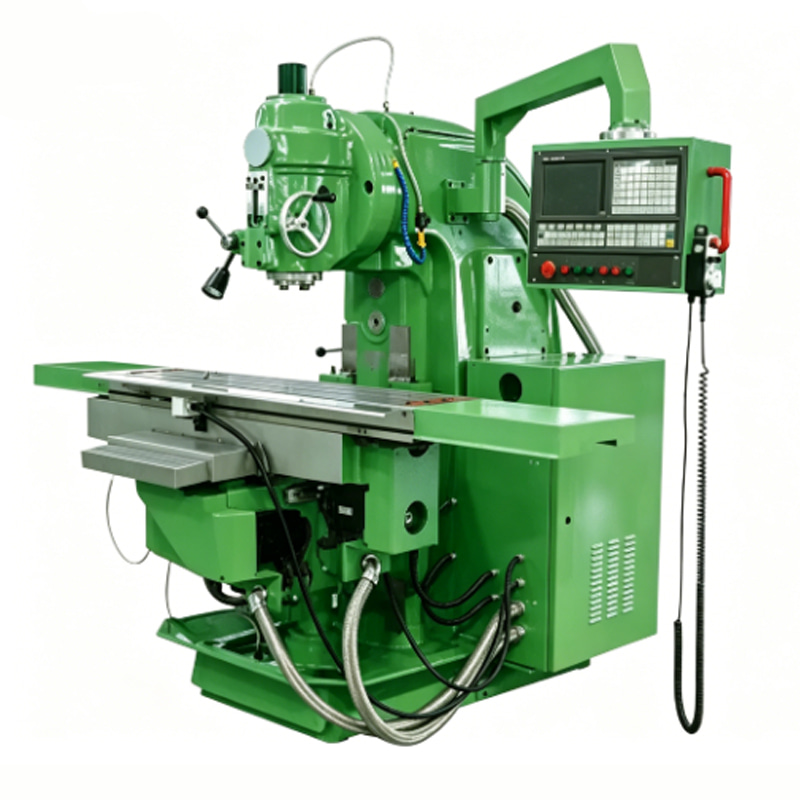

Flexible Vertical Milling Machine with Servo Feed

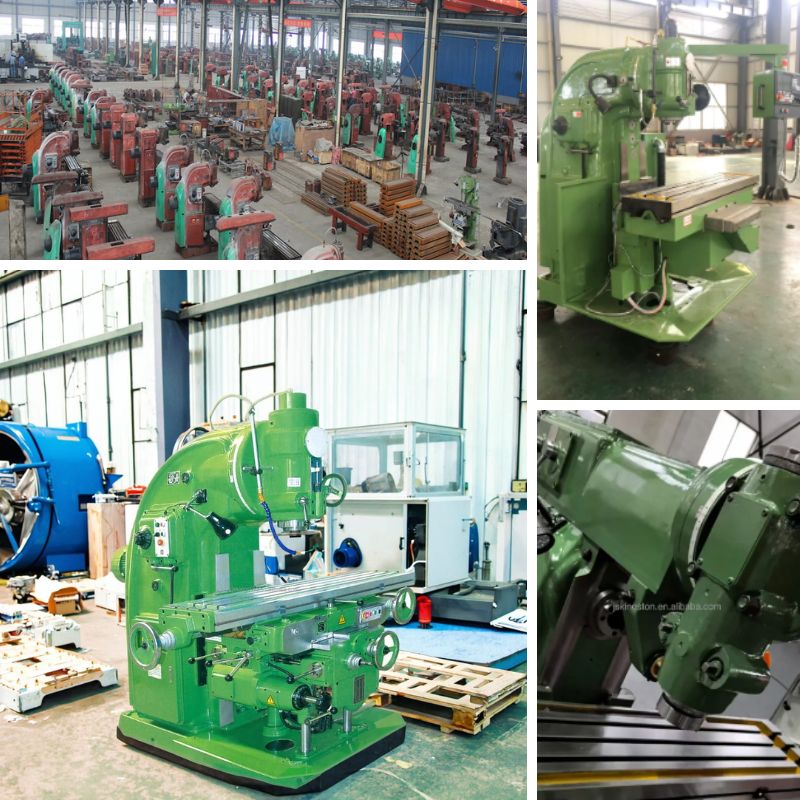

Customizable Vertical Metal Milling Machine

1.Excellent value for money: Servo feed and gear-driven spindles at an entry-level price, ideal for start-up machining workshops.

2.Servo three-axis feed: X and Y axes at 1335 mm/min, Z axis at 1000 mm/min, with precise positioning and low energy consumption.

3.12-speed spindle: 35–1500 rpm, ISO 40 taper, suitable for machining small to medium-sized parts.

4.Compact design: Dimensions 1820 × 1680 × 1810 mm, net weight just 1600 kg, easy to install.

specification

Specification	Unit	XQ5032A	XQ5032C
Table size	mIII	1370×320
Table Travel(X/Y/Z)	mm	820/300/400	1000/38C/400
Distance from spindle nose to work suriace	mm	35-435
Spindle hole taper	---	7:24 ISO40
Rapid speed of table(XY/Z)	mm/min	1335/1335/1000
Table feed(XY/Z)	mm/min	XY:30830 Z23625
T-slots(NO.Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12 steps 35-1500
Stroke of spindle quill	mm	70
Distance between spindle axis and column guiceway	mm	285
Swivel angle of Vertical milling head	---	±30°
Man motor power	kw	3
Torque ofXN/Z axis AC servo motor	N.m	15
Overall size	mm	1820X1680X1810
Net weight	kg	1600	1650

Product Advantages

Outstanding Cost Performance
Entry-level price with servo feeds and gear-drive spindle – perfect for startup shops and home workshops.
Optional Pneumatic Tool Lock
Pneumatic tool locking device – fast and effortless tool changes, improved convenience.
Precise Servo Drive
Customizable wider worktable – improves clamping flexibility for special workpieces.
Compact and Light, Easy to Install
Easily processes bevels without complex fixtures – ideal for repair work and small batch production.
Voltage Optional
Suitable for home workshops and school labs without three-phase power.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

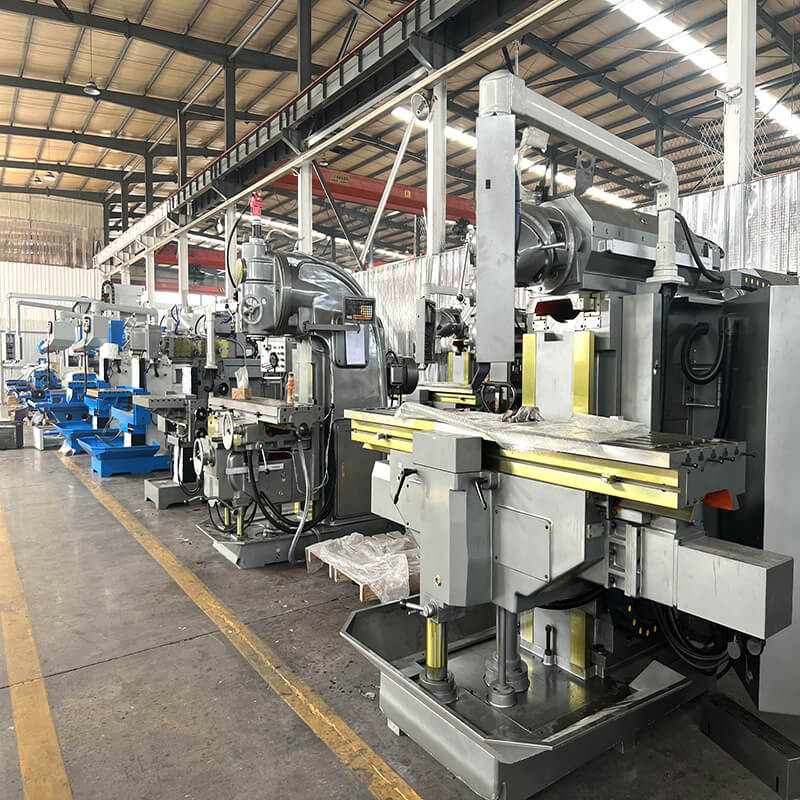

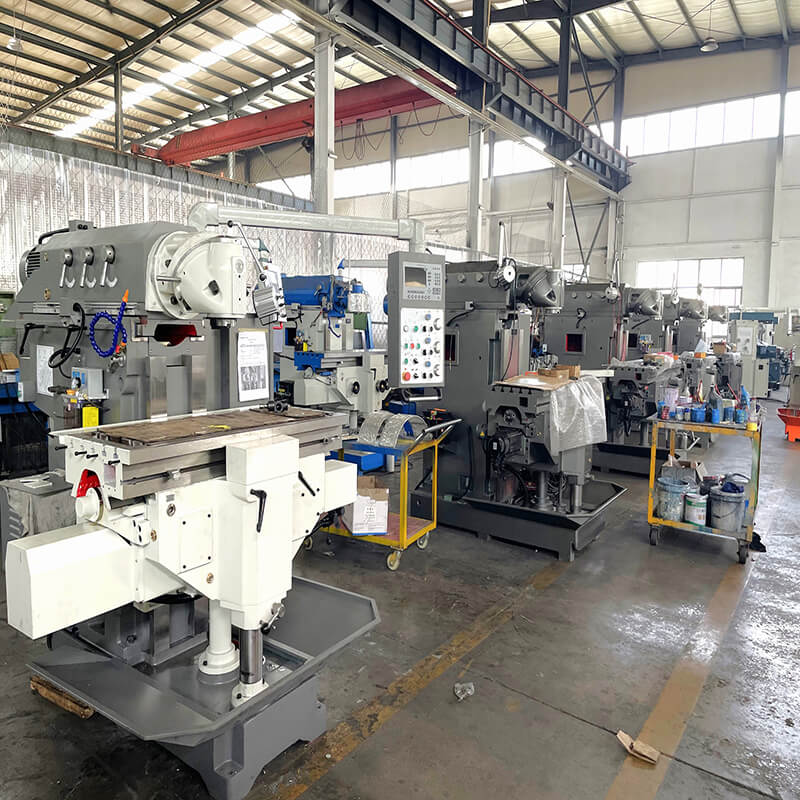

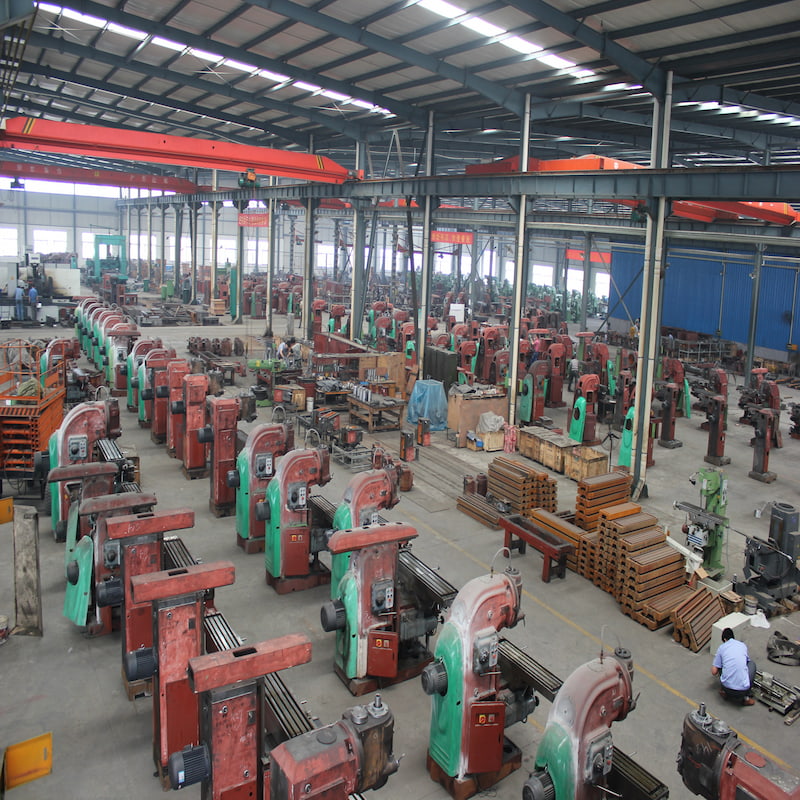

factory show

Professional Production Base, Strength in Precision Manufacturing

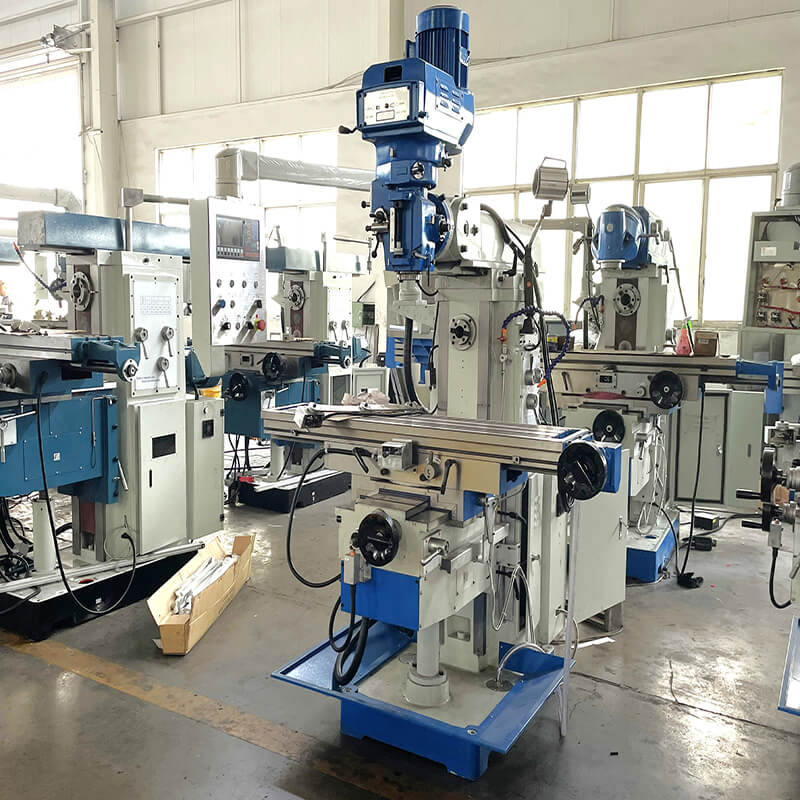

Multi‑Function Universal Milling Equipment Factory Exhibition cnc machine High-quality lathe

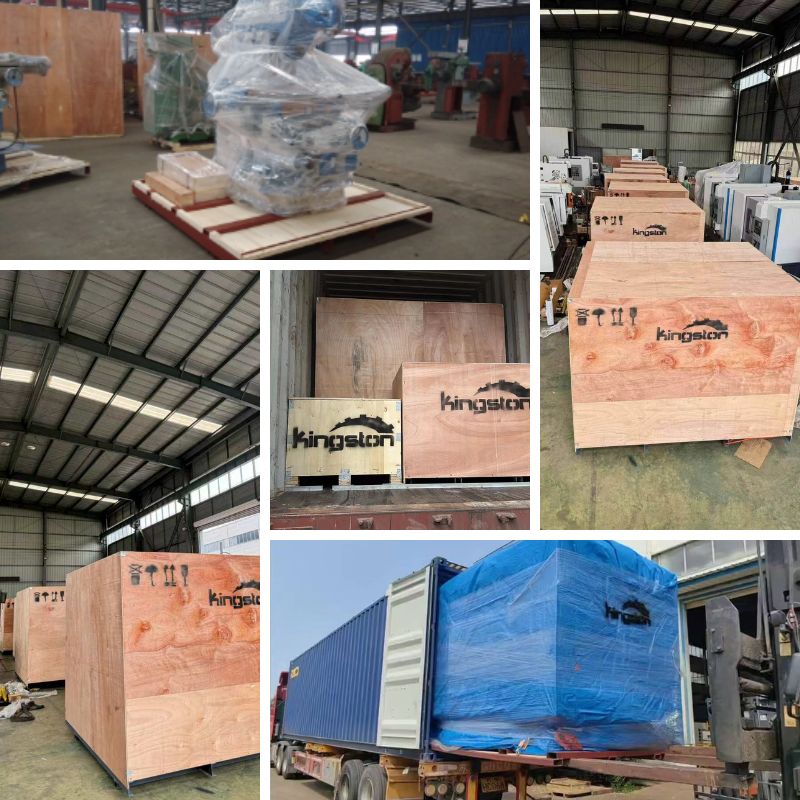

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

vertical boring and milling machine
Heavy machinery manufacturer

1. Is the XQ5032A suitable for a small workshop?

It is very suitable. It is compact, has moderate power, and is available in a 220V version.

2.Can it machine stainless steel?

Yes, but at low speeds and with shallow cuts; we recommend using coated cutting tools.

3.Does it come with a cooling system?

A cooling pump and nozzle are included as standard.

4.Can an ER collet be fitted?

The spindle has an ISO 40 taper; ER32/ER40 collets can be used with an adapter sleeve.

5.What is the warranty policy?

12 months for the machine as a whole, and 18 months for the servo motor.
