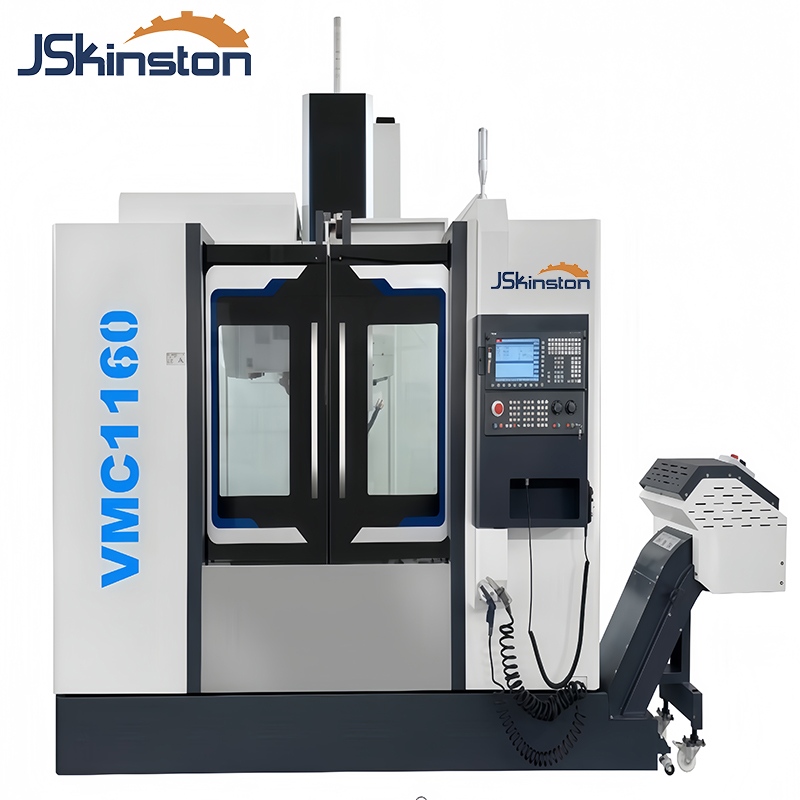

Stable Large Capacity High Precision VMC1160 Machining Center

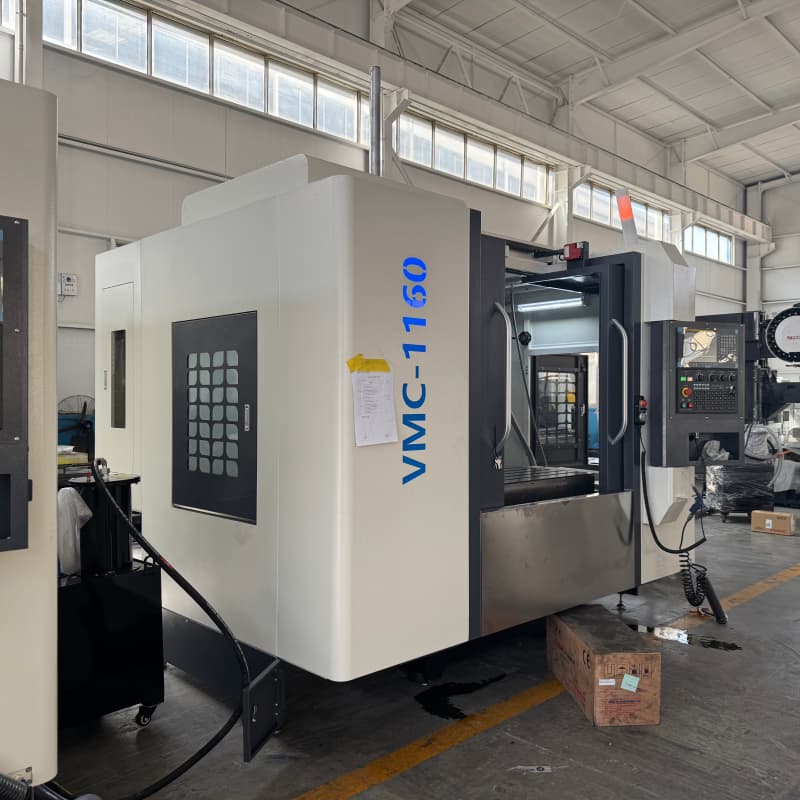

CNC machining centercenter for metel mold

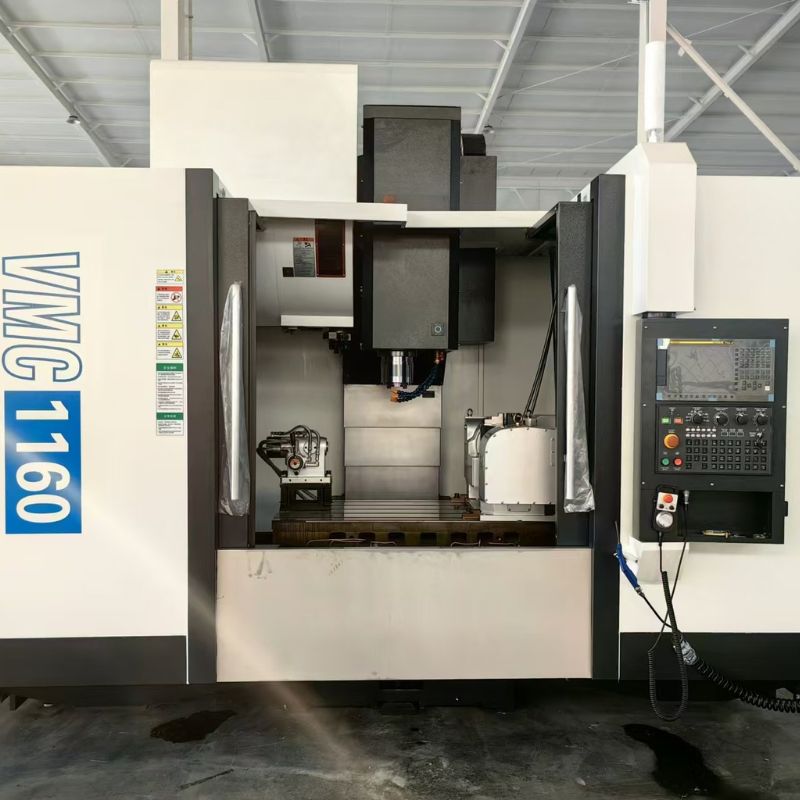

Stable Large Capacity High Precision VMC1160 Machining Center

VMC1160 vertical machining center is developed for heavy cutting and large-scale batch production. With ultra-wide travel and reinforced heavy-duty frame design, it delivers outstanding overall rigidity and anti-deformation ability. It runs stably under long-time heavy load, guarantees outstanding surface finish and high dimensional consistency for large workpieces, and is perfectly suitable for high-intensity industrial manufacturing.

Ordine (MOQ) :
1
Origine del prodotto :
China
Colore :
Customized
Porto di spedizione :
Shanghai/Qingdao
Tempi di consegna :
30
Peso :
6600

Richiedi informazioni adesso

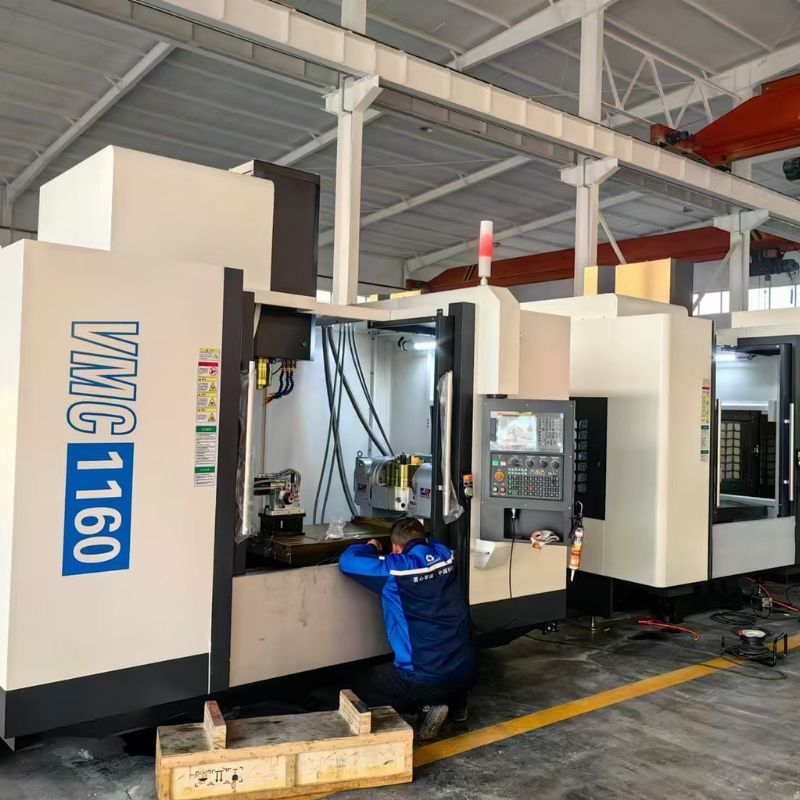

high speed cnc vertical machining center

Designed for high-end precision processing scenarios, the VMC1160 adopts upgraded high-performance transmission parts and industrial-grade electrical configuration to ensure sensitive response, smooth feed movement and excellent dynamic machining performance. The standardized centralized lubrication system and fully enclosed safety protection structure effectively block dust and cutting debris, greatly reducing daily maintenance difficulty. It can steadily cope with complex working conditions and continuous high-intensity production, serving as a reliable and cost-effective universal processing equipment for mold making, engineering machinery, large hardware parts and customized component production.

specification

Specification	Unit	VMC1160
Table size	mm	1200*600
T Slots	-	5-18-100
Max table load	Kg	850
Table travel X	mm	1100
Table travel Y	mm	600
Table travel Z	mm	600
Spindle nose to table surface	mm	120-720
Spindle center to column surface	mm	650
Spindle speed range and driving method	rpm	8000 belt driving
Spindle taper	/	BT40
Spindle diameter	mm	150
Cutting feed speed	mm/min	1-10000
X/Y/Z Rapid feed speed	m/min	32/32/30
Hiwin lead screw		4012
Hiwin linear guide		X：45（6）、Y：45（4）、Z：45（6）
Magazine capacity	T	24
Magazine type		Disc type
Max tool diameter(No adjacent tool)	mm	Φ80/150
Controller		Fanuc 0i mf 3B
Spindle motor power	Kw	11/15
Positioning accuracy(JIS standard)	mm	±0.005
Repeatability Positioning accuracy(JIS standard)	mm	±0.003
Net weight	kg	6600
Overall size	mm	395022502800

Product Advantages

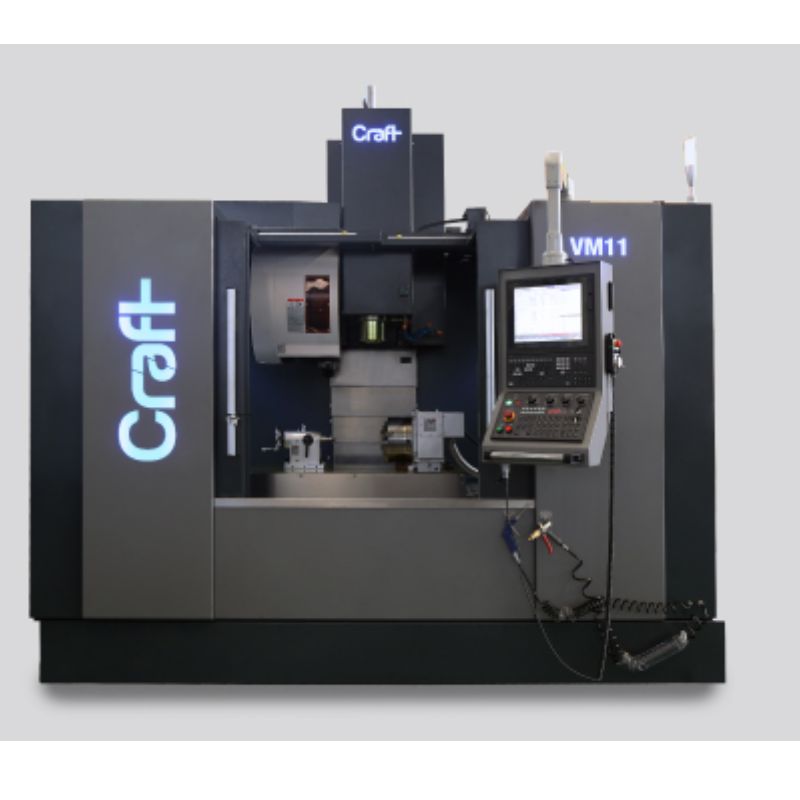

5-axis vertical cnc milling machining center

1.Reinforced heavy machine frame greatly improves overall rigidity, suitable for long-term heavy cutting tasks.
2.Extra large working travel meets the processing demands of various large-size and complex workpieces.
3.Upgraded transmission system ensures smooth operation, high feeding speed and higher production efficiency.
4.Intelligent lubrication and fully enclosed protection reduce dust pollution and extend equipment service cycle.
5.All core key components are strictly screened and tested, featuring excellent wear resistance, oxidation and corrosion resistance, effectively reducing failure rate and greatly prolonging the overall service life of the machine.

Details presentation

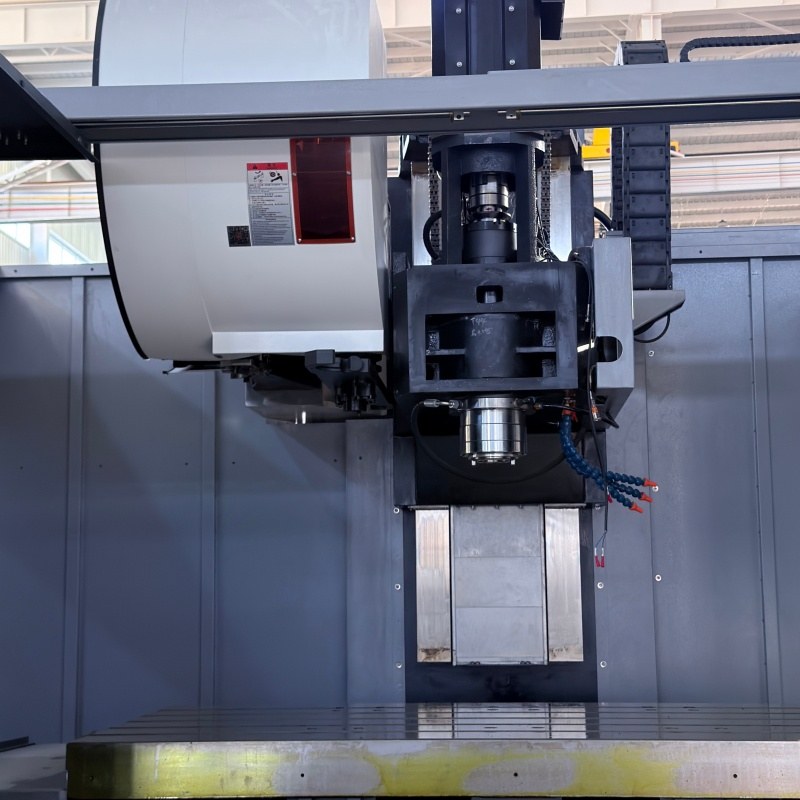

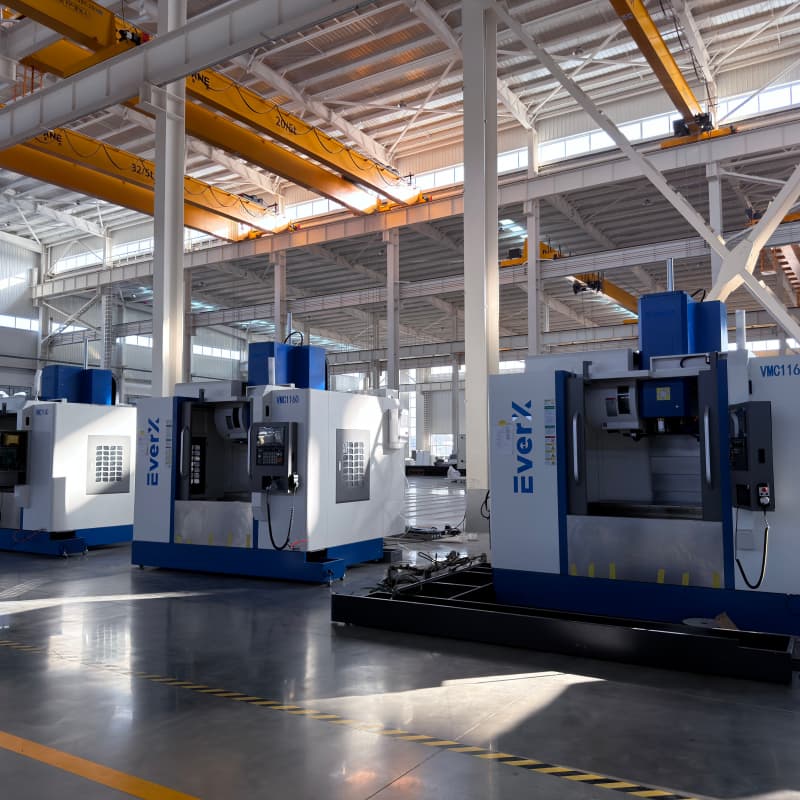

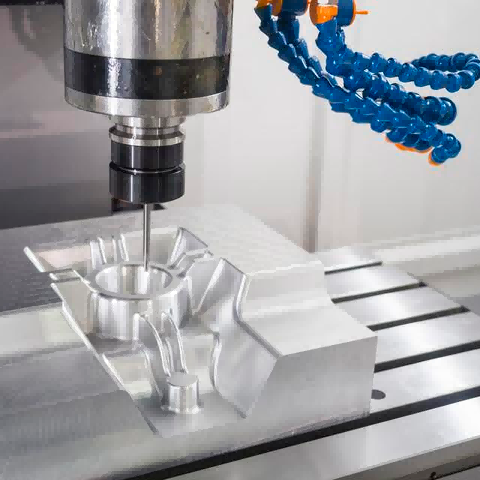

CNC milling machine for metel parts Cnc Horizontal Machining Center

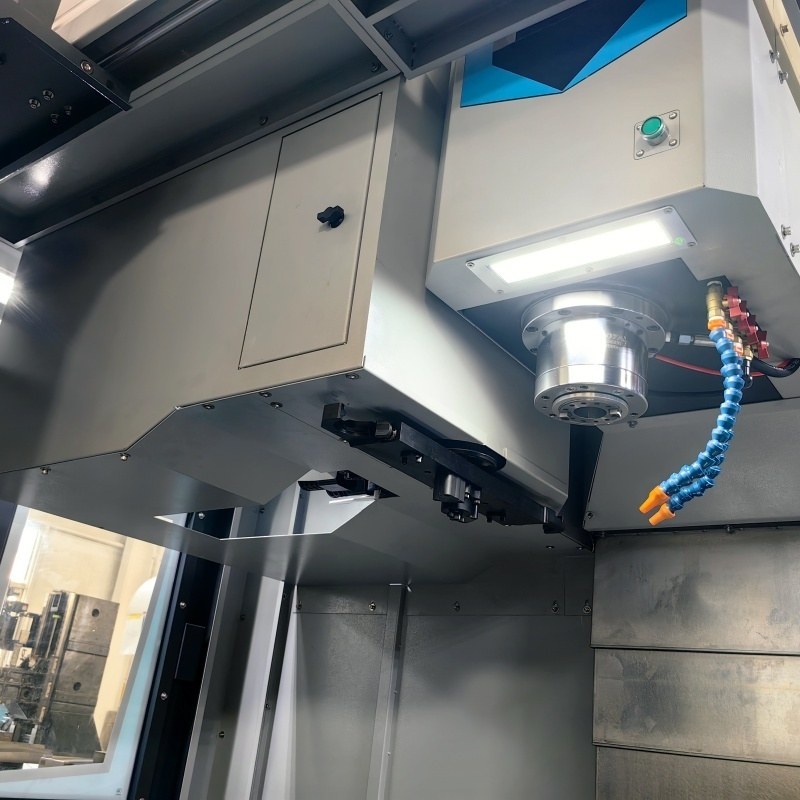

CNC vertical milling center Precision machining center cnc

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

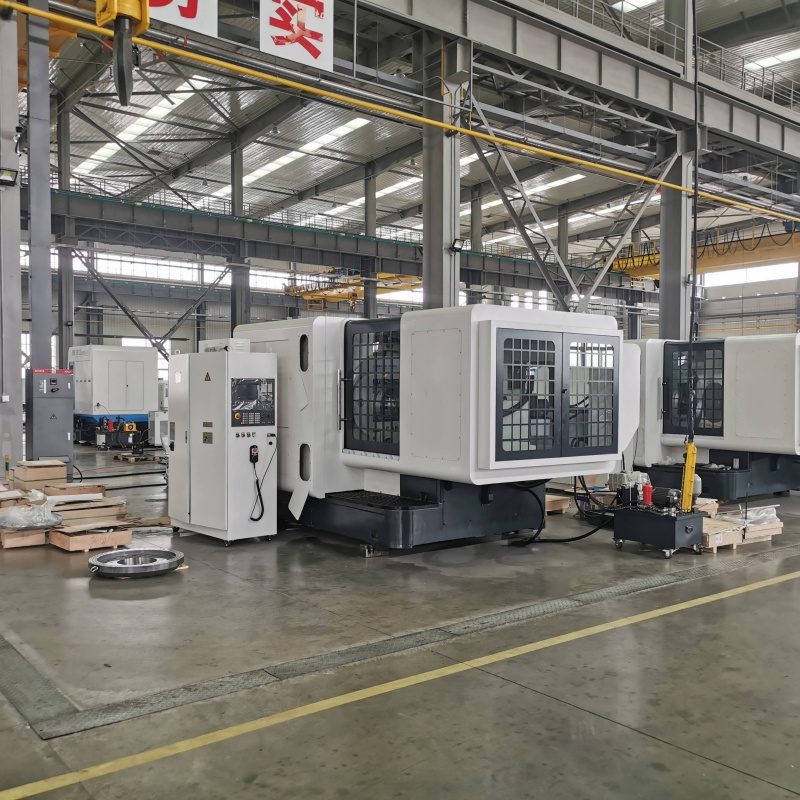

factory show

Professional Production Base, Strength in Precision Manufacturing

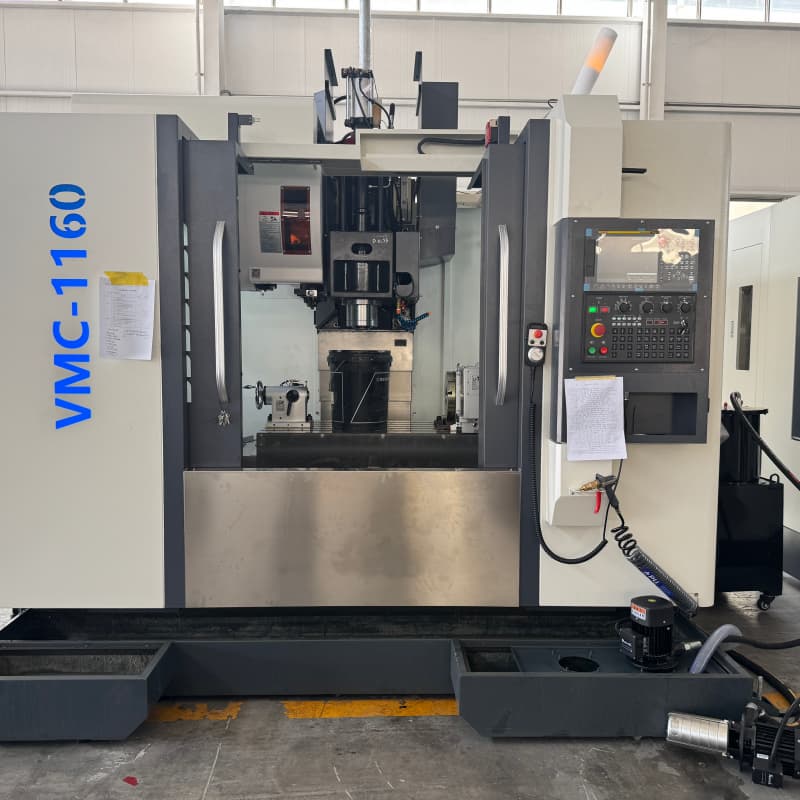

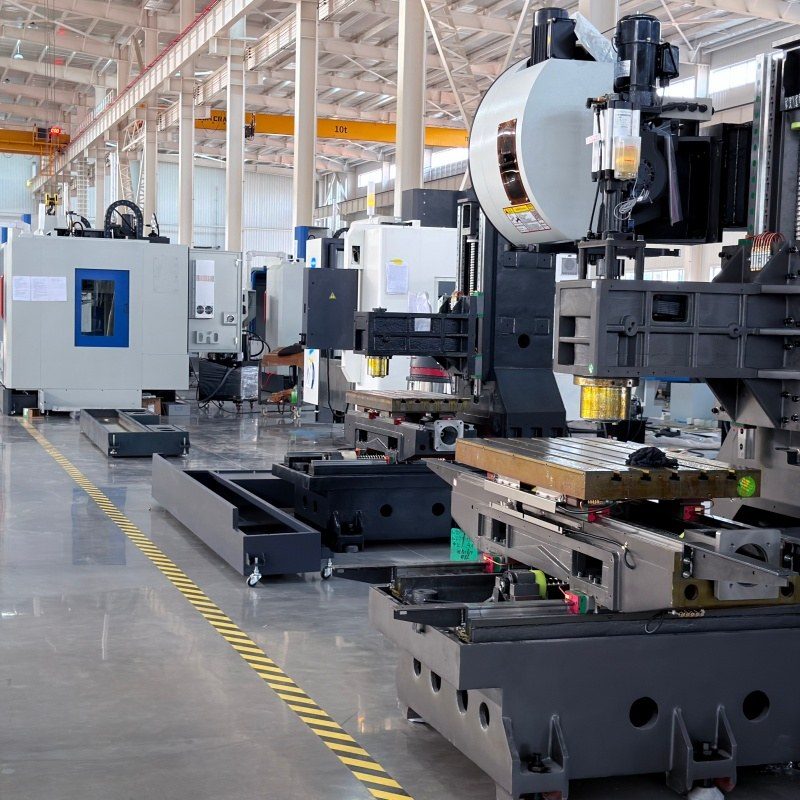

siemens machining center cnc horizontal machining center aluminum profile sawing machining center vmc machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Large Vertical Machining Center

Heavy machinery manufacturer

1. Q: What is the maintenance cost of the machine in daily use?

A: The machine adopts wear-resistant components and simple structure, which reduces daily maintenance costs and requires only regular routine inspection.

2. Q: Can the machine adapt to our existing workshop layout?

A: It has a compact and reasonable structure, small floor space, and can be flexibly placed according to your workshop layout and space size.

3. Q: How to ensure the machining accuracy for long-term continuous operation?

A: It is equipped with temperature compensation function and precision self-calibration system, which can maintain high accuracy even in long-term continuous operation.

4. Q: What if there is a fault during operation?

A: The machine has fault self-diagnosis function, which can quickly locate faults; we provide 24-hour online technical support to solve problems in time.

5. Q: Does the machine support different programming languages?

A: Yes, it supports common programming languages, compatible with your existing programming habits, and can quickly switch without additional training.
