Casa Torni Torni CNC Tornio CNC a bancale inclinato

Kingston Mini 210CNC Lathe High Precision Mach for Metal Turning

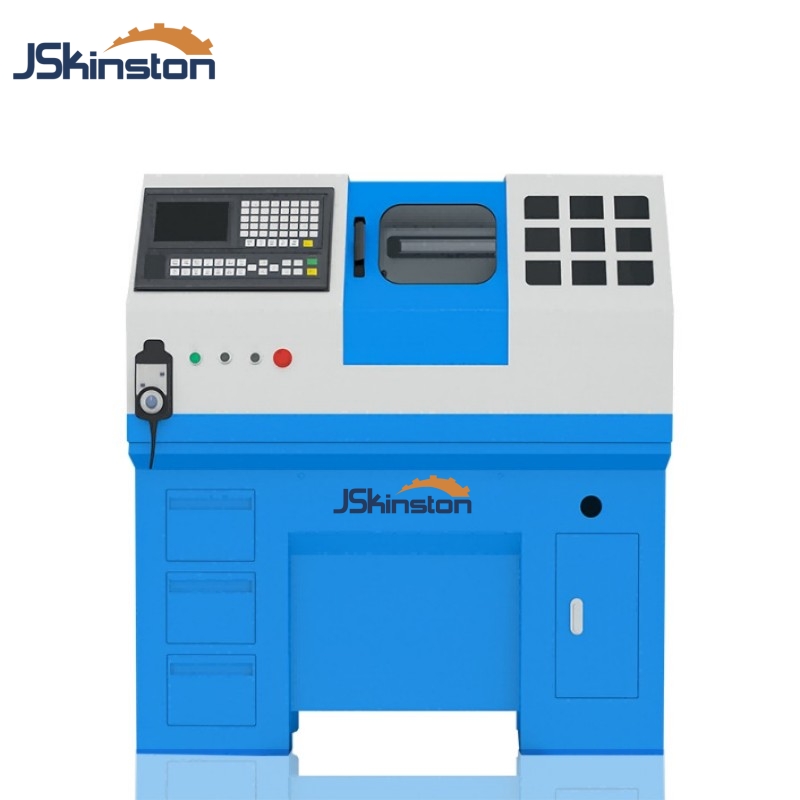

cnc lathe
cnc lathe machining
small cnc lathe machine

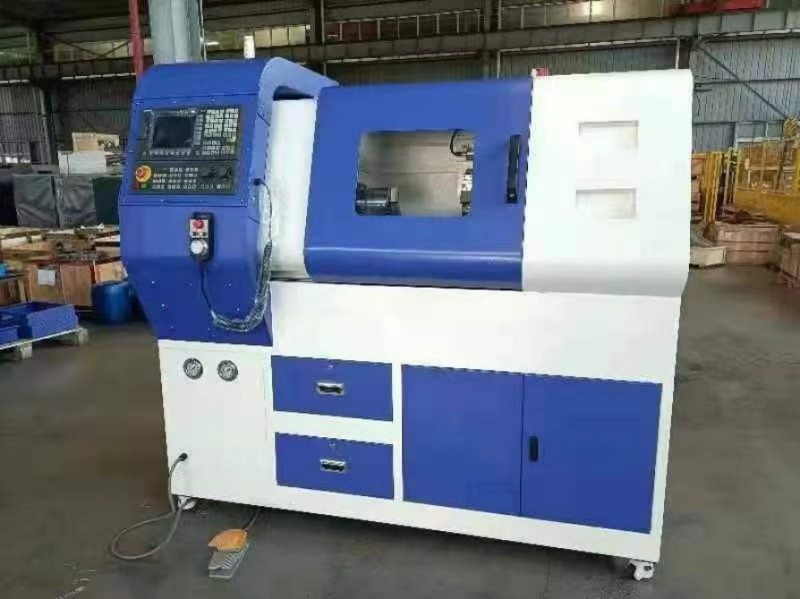

slant bed cnc lathe

Kingston Mini 210CNC Lathe High Precision Mach for Metal Turning

The Kingston Mini 210 CNC Lathe is a compact, high-precision 2-axis CNC turning machine designed for light-duty metal fabrication, small-batch production, education, and hobby applications. Engineered for accuracy, reliability, and ease of use, this mini CNC lathe delivers professional-grade metal turning performance in a space-saving footprint, ideal for workshops, labs, and training facilities.

  • Ordine (MOQ) :

    1

  • Origine del prodotto :

    China

  • Porto di spedizione :

    Shanghai

  • Tempi di consegna :

    40

  • Peso :

    300kg
Richiedi informazioni adesso

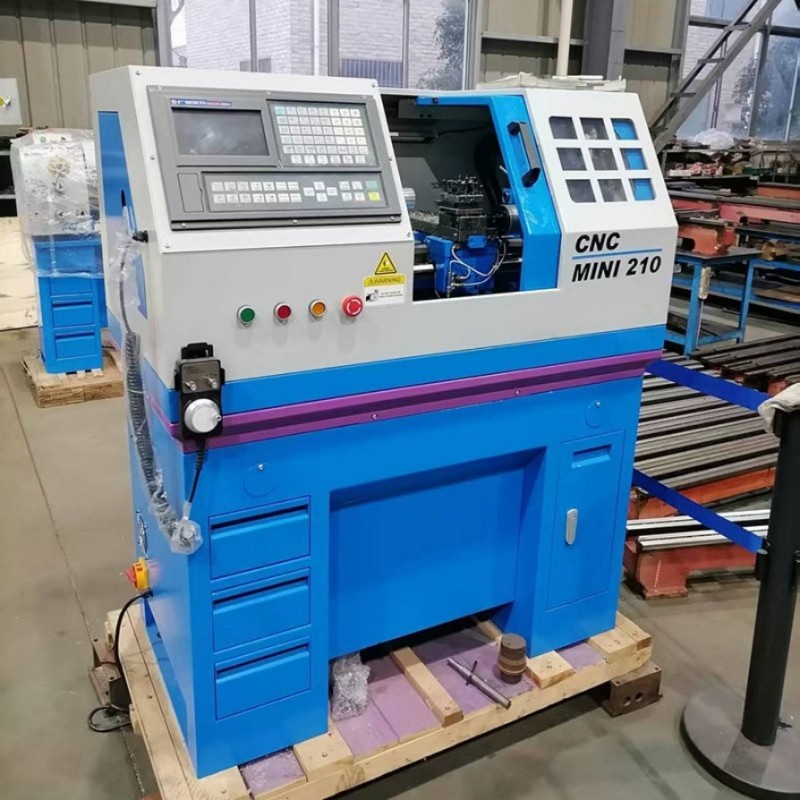

CNC 210 Mini Lathe

The CNC slant bed lathe represents the gold standard for modern precision turning. With superior chip management, exceptional rigidity, high-speed capabilities, and multi-axis options, these machines deliver faster cycle times, tighter tolerances, and greater efficiency than traditional flat bed designs. Whether you need simple 2-axis turning or complex mill-turn operations in a single setup, a slant bed CNC lathe provides the performance, reliability, and flexibility to meet your production goals.

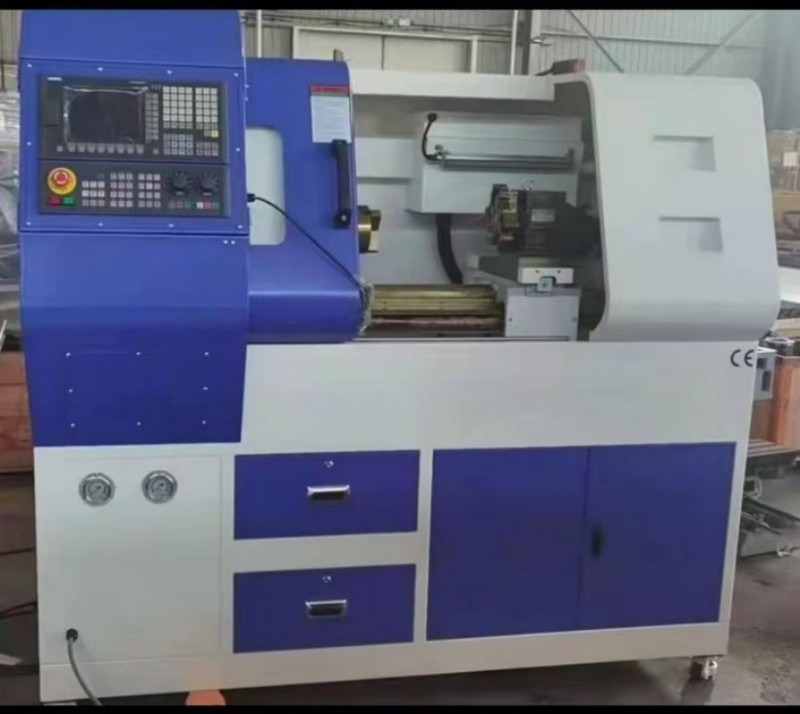

Cnc Lathe


Applications:

  • 1.Precision metal parts manufacturing
  •
  • 2.Educational training & vocational schools
  •
  • 3.Hobby & DIY metalworking
  •
  • 4.Small-batch production of shafts, pins, and bushings
  •
  • 5.Prototype development & mold making

specification




Model NO

KST-210 CNC

Rotary diameter

210mm

Machine body length

400mm

Machine body width

100mm

Spindle speed

50-2500r/min

Main cone taper

MT3

Z-axis movement speed

2000mm/min

X-axis movement speed

1000mm/min

Z-axis feed speed

500mm/min

X-axis feed speed

250mm/min

Z-axis maximum torque

2Nm

Maximum torque of X-axis

2Nm

Z-axis travel

250mm

X-axis stroke

X80mm

Z-axis motor torque

4N

X-axis motor torque

2N

Number of tools

4

Knife holder angle

360°

Tailstock taper

MT2

Tailstock stroke

50mm

Z/X-axis return accuracy

0.01mm

Tool rotation accuracy

0.005mm

Main motor power

1200W

Package size

1530*600*1500mm

Weight(n.w/g.w)

250KG/300KG



product introduction

  • Turning Center
    High Precision Performance
    With a maximum swing of 210mm and distance between centers of 400mm, the Mini 210 ensures exceptional accuracy with positioning and repeatability of ±0.01mm, perfect for precision parts machining.

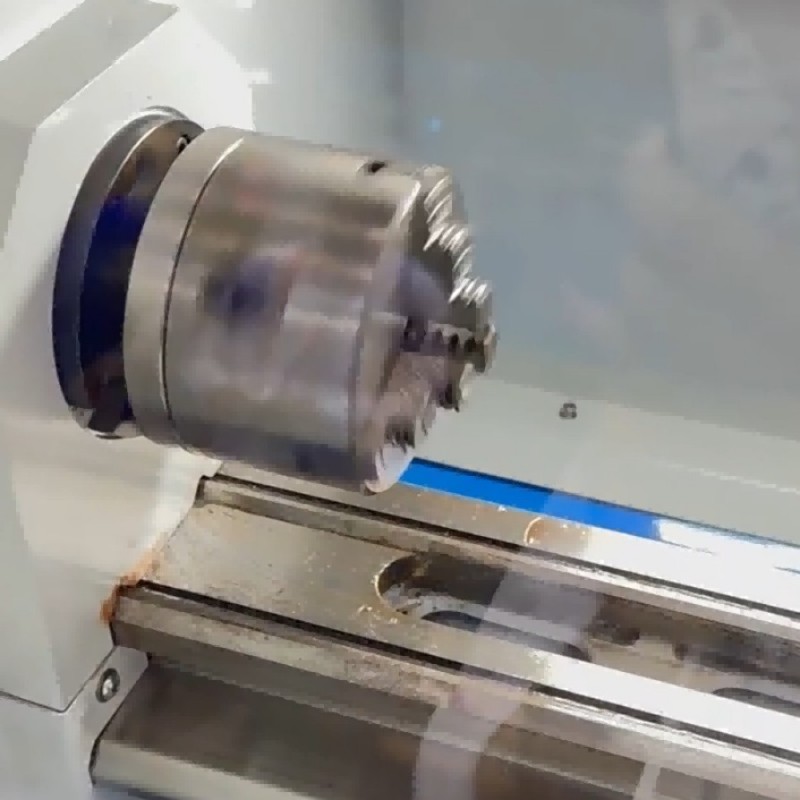

  • Slant Bed CNC Turning Machine
    Compact & Sturdy Structure
    Built with a heavy-duty cast iron flat bed and high-rigidity linear guides, this benchtop lathe minimizes vibration during high-speed turning, guaranteeing smooth surface finishes and long-term stability.

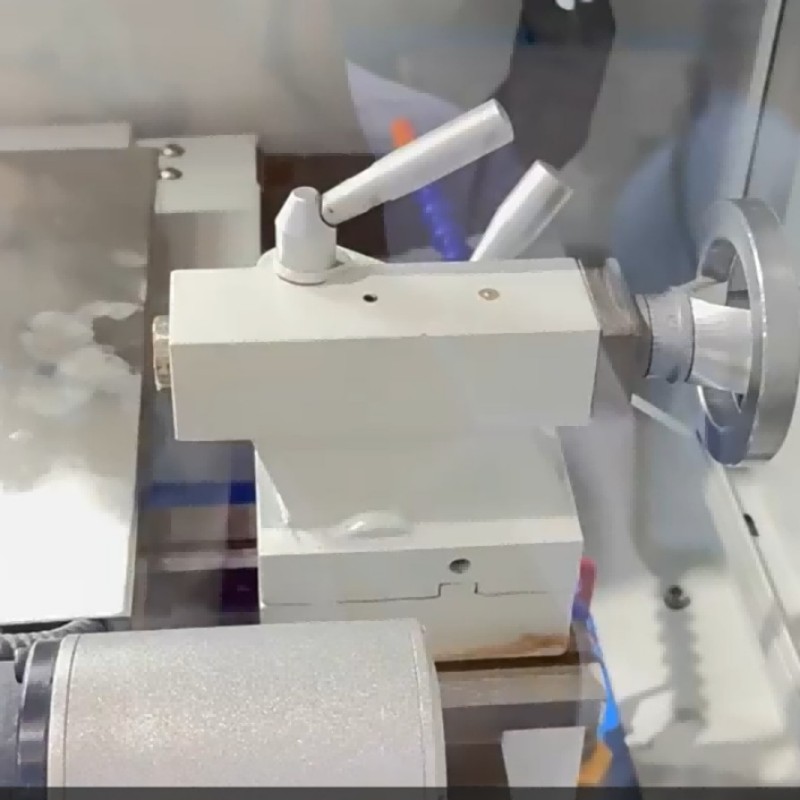

  • Turning Center
    Powerful & Efficient Spindle
    Equipped with a 1.1kW/1.2kW spindle motor (servo optional) and a spindle speed range of 50–2250rpm, it handles various metals—mild steel, aluminum, brass, and stainless steel—with consistent power.
  •
JIANGSU  KINGSTON  MACHINE  TOOLS GROUP    CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us



Community charging overall solution covers all application

  • # Mature And Stable Technology
    With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
  • # Support Customized Solutions
    We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
  • # Complete After-sales Service
    We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

--

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe



factory show

Professional Production Base, Strength in Precision Manufacturing




mini latheSlant BedCNC lathecutting cnc lathe



Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed



lathe
Heavy machinery manufacturer

FAQ

1.What CNC control systems are compatible?

 These lathes are compatible with popular CNC controllers including Siemens, Fanuc, GSK, KND, and other standard systems. Please specify your preference when ordering.

2.Where can I use the Kingston Mini 210 CNC Lathe?

 It fits perfectly for small home workshops, garage machining, vocational school training, hobby DIY metal turning, small batch precision parts production and prototype making..

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.Can a slant bed lathe perform milling and drilling?

 Yes, with optional live tooling and C-axis capability, a slant bed CNC lathe can perform milling, drilling, tapping, and off-center machining in a single setup, eliminating secondary operations.
